Profiled Roof & Wall Systems

We manufacture & supply our own range of trapezoidal profiled roof and wall cladding sheets for industrial, agricultural, commercial & domestic projects. Our range can be used as single skin sheets, part of a double skin built up system or used to over clad existing projects. To accompany the sheets, or on an individual basis, we are also able to offer a fabrication service for flashings and gutters.

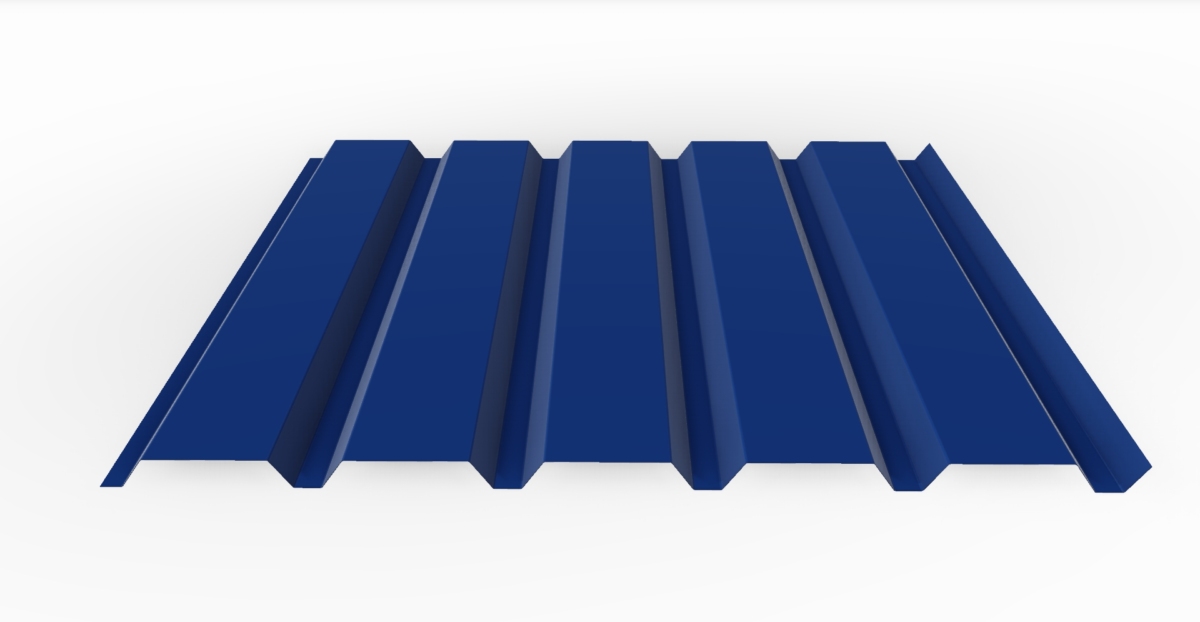

Roof Profile Axis R33

Roof Profile Axis R33

  • 0.7mm thick as standard with other options available upon request
  • 33mm deep with a 1000mm cover width
  • Can be supplied in lengths of up to 12m
  • Available in a range of colours and finishes
  • Can be laid to a minimum of 4 degrees

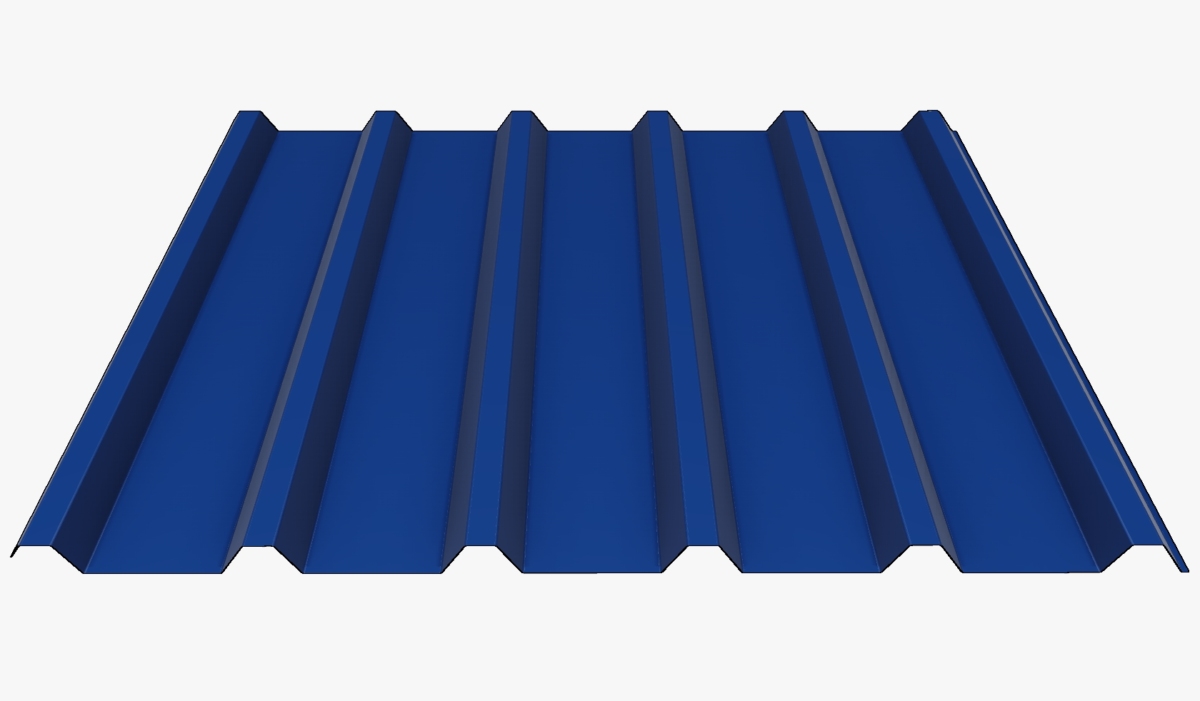

Wall Profile Axis W33

Wall Profile Axis W33

  • 0.5mm & 0.7mm thick as standard with other options available upon request
  • 33mm deep with a 1000mm cover width
  • Can be supplied in lengths of up to 12m
  • Available in a range of colours and finishes

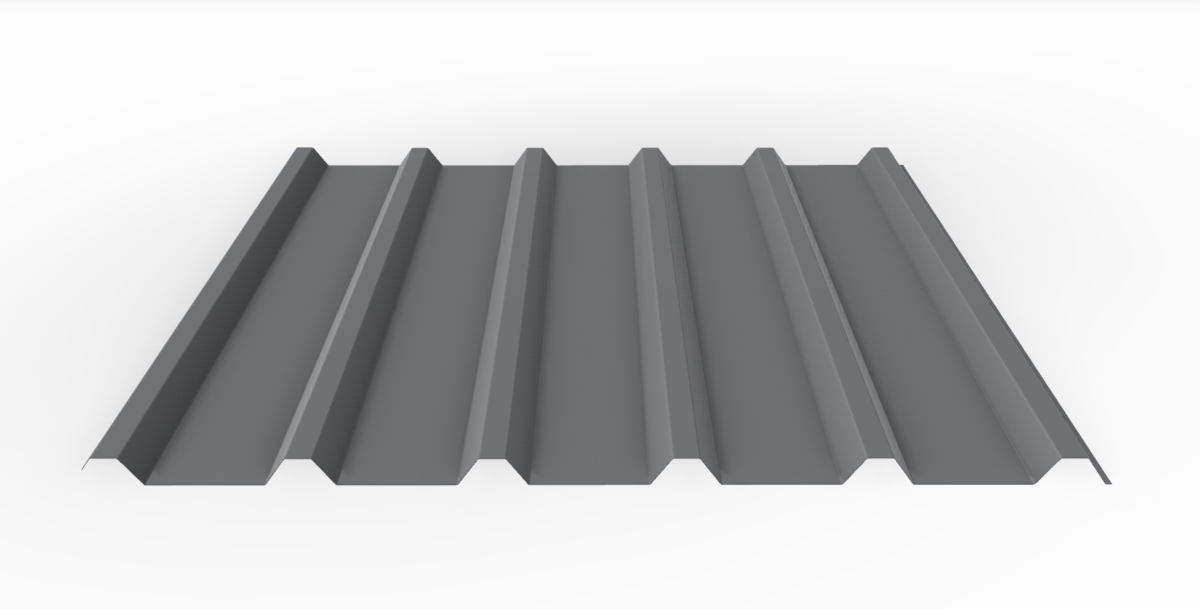

Liner Profile Axis RL20

Liner Profile Axis RL20

  • 0.4mm thick as standard
  • 19mm deep with a 1000mm cover width
  • can be supplied in lengths of up to 12m
  • Available in bright white polyester

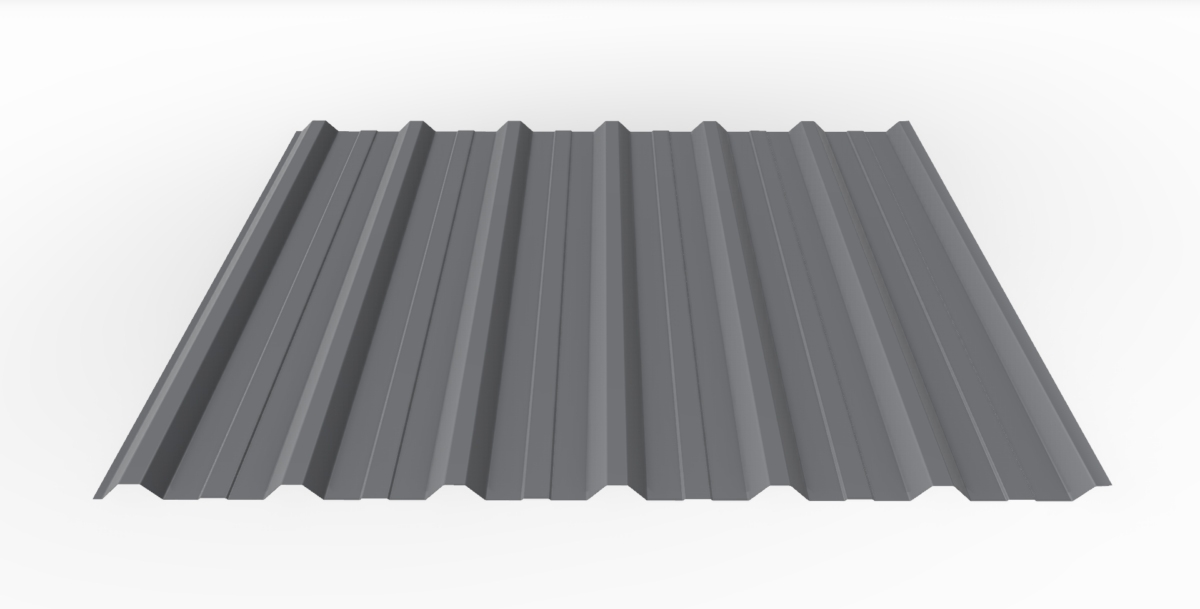

Liner Profile Axis RL33

Liner Profile Axis RL33

  • 0.7mm thick as standard
  • 33mm deep with a 1000mm cover width
  • Can be supplied in lengths of up to 12m
  • Available in bright white polyester

Accessories Flashings and Gutters

Accessories Flashings and Gutters

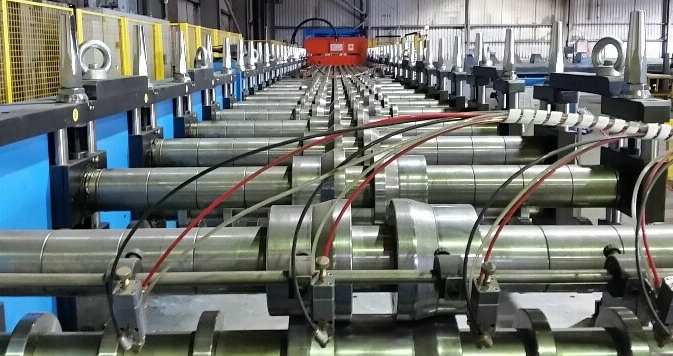

Thanks to our state of the art machinery, we are able to offer custom flashings, gutters and fabrications for the full building envelope. Flashings and gutters can be supplied in lengths of up to 6m long allowing for reduced install times and fewer joints. We have a wide range of material suppliers allowing us to match the colour and finish of sheets supplied by other companies. Our insulated gutters come as standard with anti slip membrane to the external face for safety.
