Axiom IP
Interlocking Plank Rainscreen

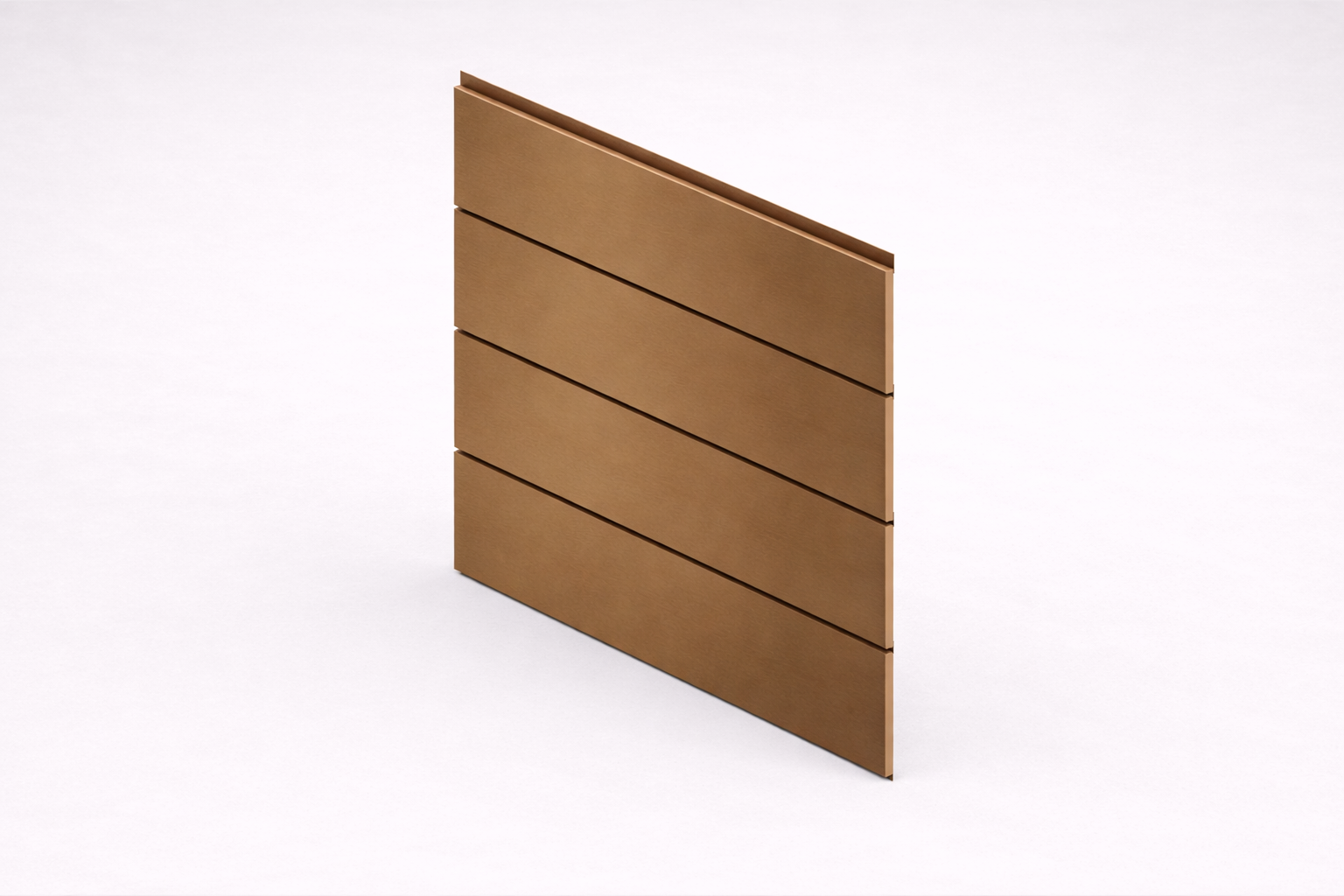

Axiom IP combines streamlined installation with striking visual depth. Its secret fix interlocking plank design ensures secure fit and superior rigidity while maintaining a clean, contemporary appearance.
Key Features & Benefits:
- No visible fixings as the fixings are contained within the recess.
- As the panels are fully mechanically fixed there is no chance of movement in high winds and more resistant to tampering or accidental dislodgement.
- Versatile finishes: Versatile finishes: Available in anodised, powder-coated, and specialist treatments (textured /perforated)
- Compliance Assured: Tested for fire safety, weather resistance, and structural integrity
- Extremely versatile: Axiom IP can be installed vertically, horizontally or as a soffit system.
- Robust: Engineered interlocking joint detail and folded end returns offers contractors the confidence in the panels ability to perform under harsh conditions when compared to traditional planks.
- Various joint widths are available, ranging from closed, to 10mm or 20mm giving architects the freedom to choose.
Technical Overview
Axiom IP is a secret fix interlocking plank, allowing vertical and horizontal orientations. The joint size is also customisable, from closed joints to 20mm wide.
As the interlocking panels support each other, only one fixing at maximum 600mm
centres is required into the support rail.
Maximum Tested Panel Size
600mm wide/high x 3100mm high/wide (depending on orientation)
Note, larger formats are available, subject to structural
verification. Maximum flat sheet size is 2000mm x 4000mm.
