Axiom RF
Recess Fix Rainscreen System
Axiom RF offers refined detailing with its recessed-fix design, delivering crisp joint lines and a premium finish. Engineered for precision and
performance, it’s the perfect choice for façades where subtle sophistication matters.
Key Features & Benefits:
- No visible fixings: As the fixings are contained within the recess.
- As the panels are fully mechanically fixed there is no chance of movement in high winds and more resistent to tampering or accidental dislodgement.
- Unique profiled panel returns: Allow for a rapid, accurate installation offering a ‘stacking effect’, a favourite by installers.
- Bottom of the panels remain open to allow appropriate ventilation and drainage of any residual water, allowing the façade to breath.
- Versatile finishes: Available in anodised, powder-coated, and specialist treatments (textured /perforated)
- Compliance Assured: Tested for fire safety, weather resistance, and structural integrity
Technical Overview

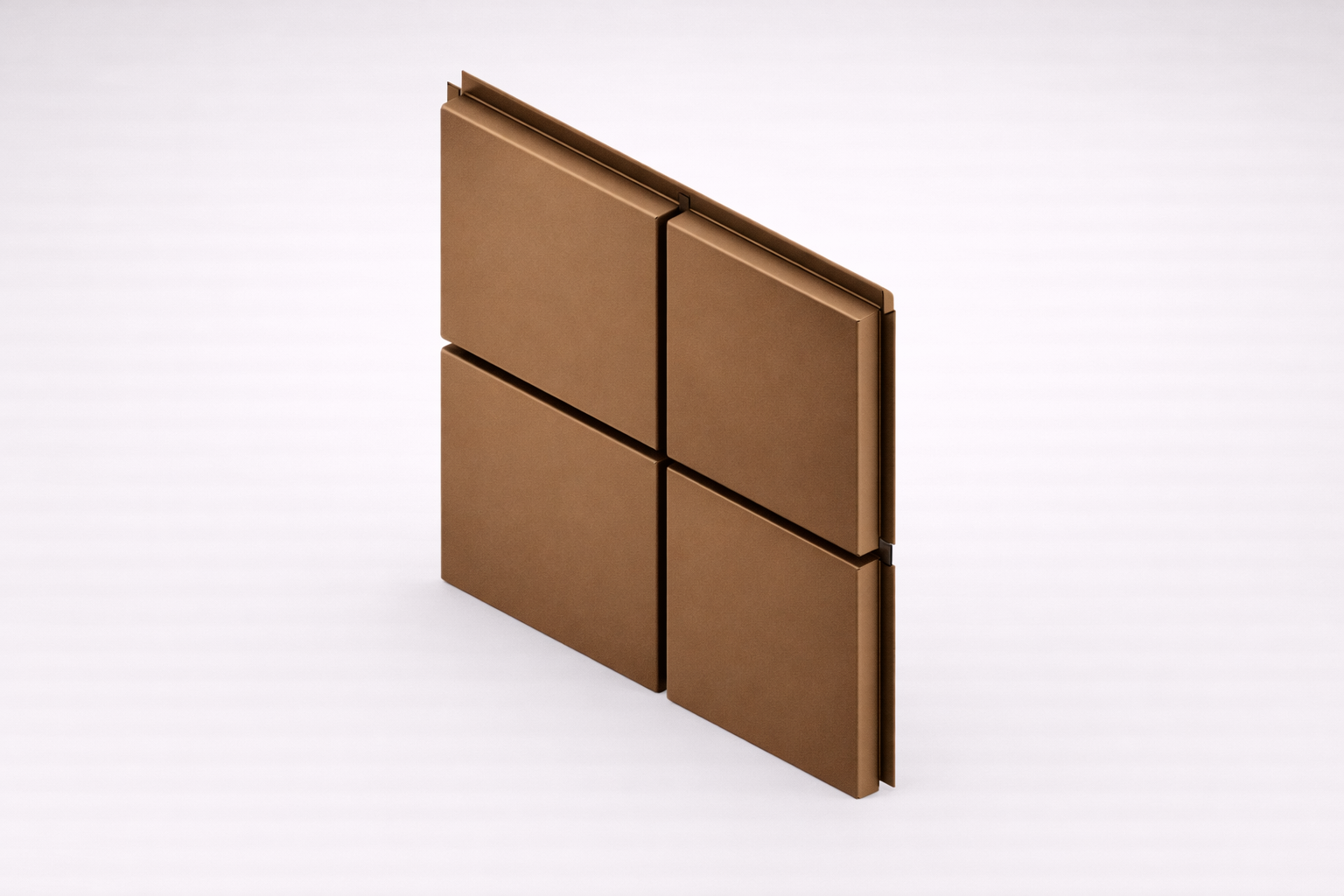

Axiom RF is a portrait orientated recess fixed cassette panel, secured to secondary framing
at maximum 600mm vertical centres.
The panel offers a unique ‘stack effect’ interlock detail
allowing a fast, clean install.
Maximum Tested Panel Size
800mm wide x 3100mm high.
Note, larger formats are available, subject to structural
verification. Maximum flat sheet size is 2000mm x 4000mm.
