Axiom X
Horizontally Laid Hook-On Secret Fix Rainscreen System
Axiom X is a precision-engineered aluminium rainscreen system designed for speed, strength, and style. Its hook-on secret fix design ensures a seamless façade with no visible fixings, delivering a clean, contemporary aesthetic for modern architecture.
Key Features & Benefits:
- Hook-On Secret Fix: Creates an uninterrupted surface for a sleek finish
- Rapid Installation: Panels are designed for efficient, secure mounting
- Durable Aluminium Construction: Lightweight yet robust for long-term performance
- Versatile Finishes: Available in anodised, powder-coated, and specialist treatments
- Compliance Assured: Tested for fire safety, weather resistance, and structural integrity
- Integrateable: Axiom X and Y can be used together to create a portrait and landscape facade.
Technical Overview

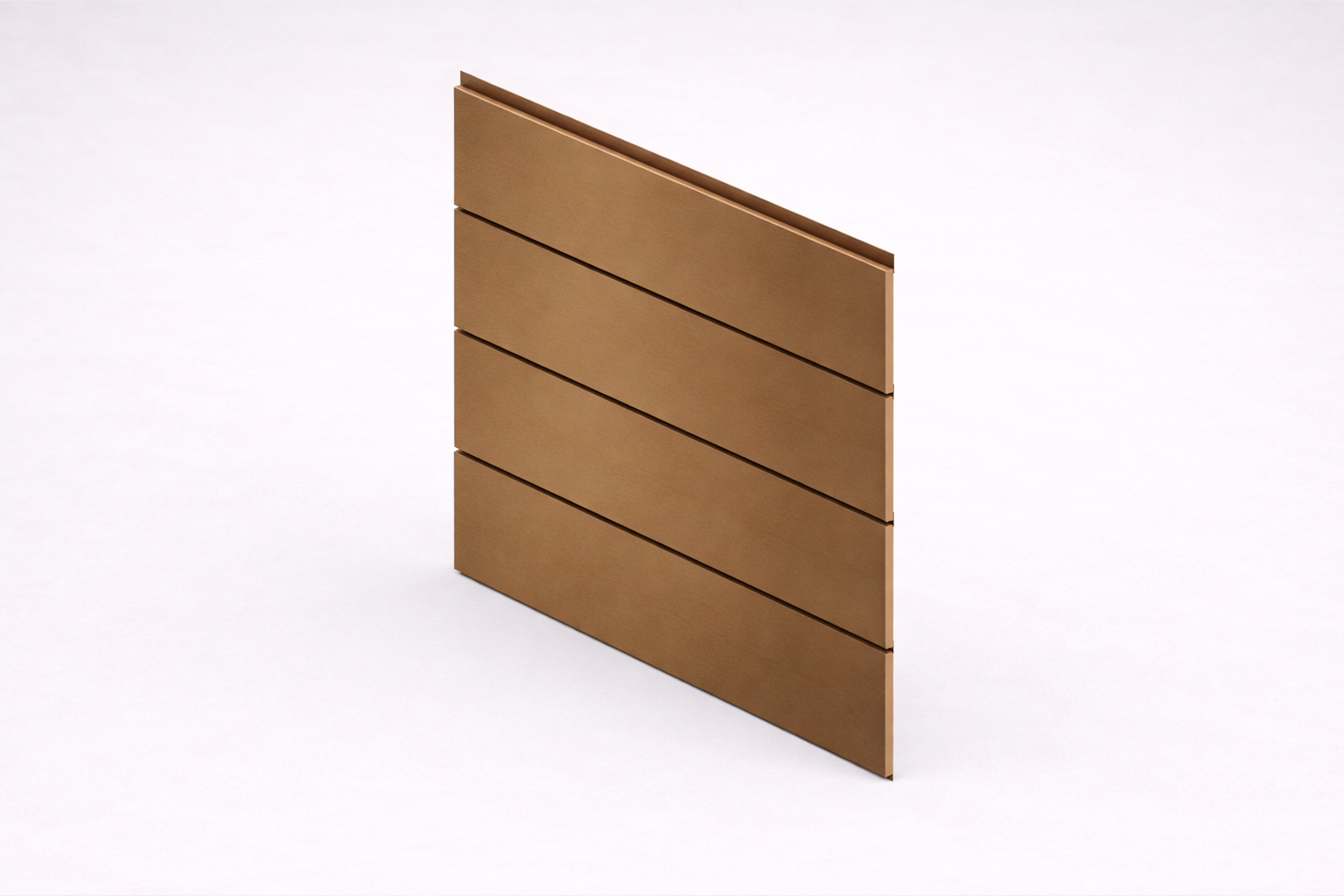

Axiom X is a landscape orientated ‘hook on’
panel, supported by the Axiom Clip at maximum
750mm horizontal centres to each side, secured
in the top with a hidden fixing aligned to the
Axiom Clip.
Maximum Tested Panel Size:
3100mm wide x 800mm high. Note, larger formats are available, subject to structural verification.
Maximum flat sheet size is 2000mm x 4000mm.
